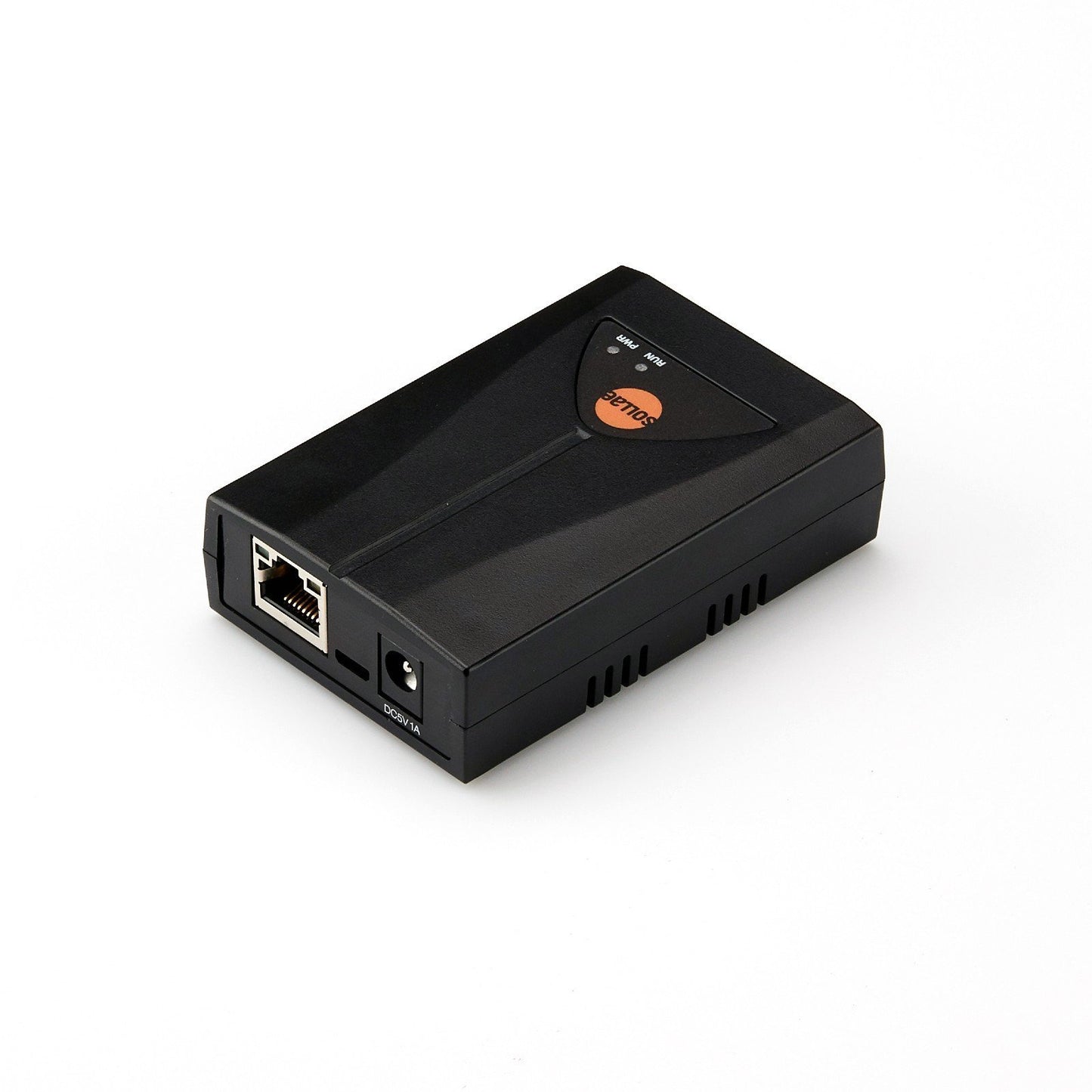

The ezTCP SIG-5450 from Sollae Systems is a remote I/O gateway equipped with 2 digital output ports connected to relays and an Ethernet interface. The device is designed to control the equipment from remote control centers or HMI devices via Modbus TCP protocol. The device can also be controlled by using any Modbus TCP software/app.
We provide free software and a smartphone app, called ModMap, which lets you manage multiple devices easily and conveniently.
Apart from ON/OFF control, each individual digital output can generate a pulse when receiving a specific Modbus TCP request from a remote device, software, or smartphone app.
The relays connected to digital output support both NO (Normal Open) and NC (Normal Closed) mode. The SIG-5450 supports up to four TCP connections simultaneously, enabling to monitor sensors from different HMI/software/apps at the same time.
Features:
- 2 digital output ports (Relay): Both NO and NC output
- Supports pulse mode on digital output ports
- Supports Modbus/TCP
- Supports multiple TCP connections (Max. 4 channels)
- Supports a master mode for the Internet Switch
- Free Modbus/TCP program
- Industrial temperature range (-40℃ ~ +85℃)
Specifications:
- Digital Output
- Output Type: Relay (Type C - NO/NC, Max DC 30V/2A with resistive load)
- Number of Ports: 2
- Network Physical Interface
- Network Interface: 10Base-T/100Base-TX Ethernet(RJ45)
- Ethernet Speed: Auto Sense
- 1:1 or Cross-over Cable Auto Sense
- 1000 VAC Isolation
- Software Functions
- Protocols: IPv4/IPv6 Dual Stack
TCP/UDP
ICMP, DHCP, mDNS, Modbus/TCP
SSL/TLS - Indicators
-
LEDs: PWR, STS, MTX, MRX, Do0, Do1
- Management
- spFinder: Configuration and Monitoring Tool
- Access Security: Password
- Dimensions
- Size: 94mm x 57mm x 23mm (3.7 x 2.2 x 0.9 inches)
- Weight: About 68g (2.4 ounces)
- Operating Environment
- Input Voltage: DC 5±0.5V
- Protection: Reverse Voltage Protection / Surge Protection
- Current Consumption: Typically, 210mA
- Operating Temperature: -40℃ ~ +85℃
- Storage Temperature: -40℃ ~ +85℃
- Certifications
- KC Registration(KN 32, KN 35)
- CE EMC 2014/30/EU, RoHS 2011/65/EU
- FCC FCC Part 15 Subpart B, Class A
1X SIG-5450 ezTCP 2-Port Digital Output I/O Gateway
The delivery of this item is stock to 2 weeks. Please contact us prior to placing your order for a specific delivery time.
Documentation & Resources:
SIG-5450 ezTCP 2-Port Digital Output I/O Gateway Product Web Page
