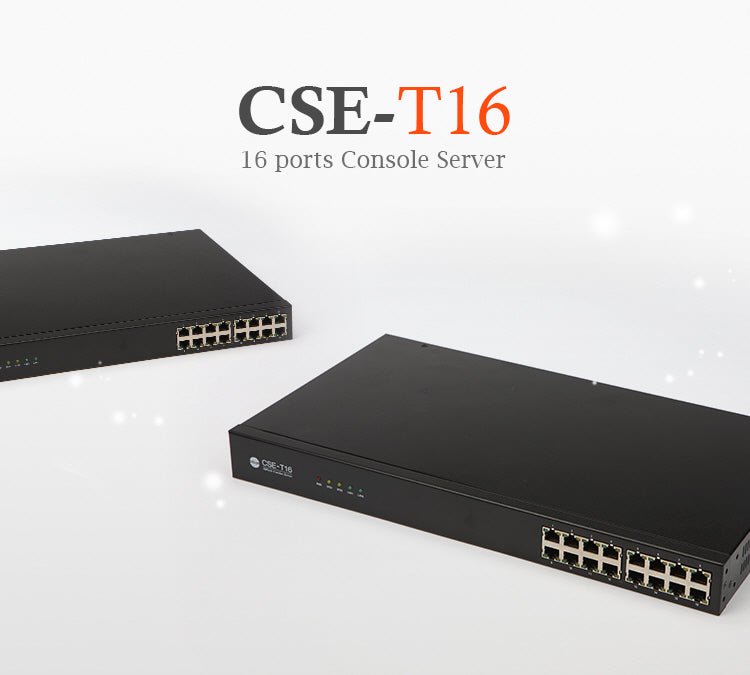

The ezTCP CSE-T16 is a 16-port RS-232 console server allowing devices with console ports to embed networking capabilities. With CSE-T16, therefore, you can easily monitor the status of console ports over the network from anywhere in the world. It also helps you save time and energy by improving the efficiency of integrated management and control of many devices in diverse applications.
The CSE-T16 RS232 console server is an ideal solution for Remote Console Monitoring as it supports useful features such as 16 ports of RS232, a security protocol (SSL) to protect data transmission, sharing serial ports through the network (Telnet with RFC2217), etc
CSE-T16 can apply in communication environments such as Remote Console Monitoring, etc.
Features:
- 19 inches standard rack type
- Free smart phone application
- Security functions (SSL 3.0 / TLS 1.0, Password)
- Separator settings for packet fragmentation
- Simple and intuitive configuration tool provided
- Virtual COM port (ezVSP) provided
Specifications:
- Serial Physical Interface
- 16 x RS232 ports
- RXD, TXD, RTS, CTS, DTR, DSR, GND
- Connector: 16X RJ45 Connector
- Serial Port Properties
- Baudrate: 300bps ~ 115,200bps
- Data Bits: 5, 6, 7 bits
- Parity: None, Even, Odd, Mark, Space
- Stop Bit: 1, 1.5, 2
- Network Interface
- 10Base-T/100Base-TX Ethernet (RJ45)
- Ethernet Speed Auto Sense
- 1:1 or Cross-over Cable Auto Sense
- Software Functions
- Protocols
- TCP, UDP, IP, ICMP, ARP, Ethernet, TELNET
TFTP, DHCP, DNS, DDNS, SSL3.0/TLS1.0 - Security
- SSL (Secure Socket Layer)
- Password for Configuring
- Communication Mode
- TCP Server (T2S)
- TCP Client (COD)
- UDP Mode (U2S)
- Operating System
- MIC RTOS
- Additional Functions
- Separator settings for packet fragmentation
- Indicators (LEDs)
- PWR, STS1, STS2, LAN1, LAN2, Serial
- Supplementary Software
- ezManager: Configuration Tool for Windows
- ezVSP: Serial to Network Virtual Driver for Windows
- ezTerm: Simple TCP/IP Communication Test Tool
- Dimensions
- Size 437mm x 240mm x 44mm
- Operating Environments
- Input Voltage: AC 85V ~ 264V
- Power Consumption: 7W
- Operating Temperature: 0℃ ~ +60℃
- Storage Temperature: -20℃ ~ +70℃
- Certifications
- KC: Registration(KN 22, KN 24)
* The above information is subject to change. Envistia Mall and Sollae Systems are not responsible for any changes.
Package includes:
Delivery: Typically 2 weeks ARO. Please contact us to confirm delivery prior to purchase.
Documentation & Resources:
Videos:
ezTCP CSE-T16 RS232 Console Server Introductory Video
